Annotation axis guide

This axis guide acts as annotation: it draws labels at specified places. It also wraps an inner guide, making the behaviour look like one is 'adding' the annotation on top of the regular guide.

Usage

guide_axis_annotation(
  aesthetic,
  label = as.character(aesthetic),
  ...,
  key = NULL,
  arrow = NULL,
  inner = waiver(),
  title = waiver(),
  theme = NULL,
  order = 0L,
  position = waiver(),
  call = NULL
)

annotate_top(..., position = "top")

annotate_right(..., position = "right")

annotate_bottom(..., position = "bottom")

annotate_left(..., position = "left")

Arguments

aesthetic

A vector of values for the guide to represent.

label

A <character[n]> or list of expressions to use as labels.

...

Additional graphical properties parallel to aesthetic. Can be text_colour, size, face, hjust, vjust, angle or lineheight for the labels. Can be line_colour, linewidth and linetype for ticks. Setting colour will also set text_colour and line_colour. For annotate_top(), annotate_right(), annotate_bottom() and annotate_left(), arguments are passed on to guide_axis_annotation().

key

A standard key overriding the aesthetic, label and ... arguments.

arrow

A grid::arrow() specification. Can be NULL (default) to draw no arrow.

inner

A guide that supports the aesthetic to draw the annotation across. When waiver() (default), populates a guide_axis_base() except in the "top", "right" and "theta.sec" positions.

title

One of the following to indicate the title of the guide:

• A <character[1]> or <expression[1]> to set a custom title.

• NULL to not display any title.

• waiver() (default) to take the name of the scale object or the name specified in labs() as the title.

theme

A <theme> object to style the annotation part of this guide differently from the plot's theme settings. The theme argument in this guide overrides and is combined with the plot's theme.

order

A positive <integer[1]> that specifies the order of this guide among multiple guides. This controls in which order guides are merged if there are multiple guides for the same position. If 0 (default), the order is determined by a hashing indicative settings of a guide.

position

A <character[1]> giving the location of the guide. Can be one of "top", "bottom", "left" or "right".

call

A call to display in messages.

Value

A <Guide> object

Details

Under the hood, this guide is a hybrid composition guide. The theme() options that govern the styling are partially determined by its consituents. They are linked below so you can find their 'Styling options' sections.

| Constituent | Description | | compose_ontop() | Composes the annotation on top of the inner guide | | guide_axis_base() | The default inner guide | | primitive_ticks() | Display of the annotation ticks | | primitive_labels() | Display of the annotation labels |

Styling options per annotation can be set via ... as described above.

The context-agnostic alternative to using theme() is to use theme_guide():

# Note that `theme` is used *only* for the annotation
guide_axis_annotation(theme = theme_guide(
  text = element_text(),
  ticks = element_line(),
  ticks.length = unit(5, "mm")
))

See also

Other standalone guides: guide_axis_base(), guide_axis_dendro(), guide_axis_nested(), guide_axis_plot(), guide_axis_symbols(), guide_circles(), guide_colbar(), guide_colring(), guide_colsteps(), guide_legend_base(), guide_legend_cross(), guide_legend_group(), guide_legend_manual()

Examples

# Basic plot
p <- ggplot(mpg, aes(displ, hwy)) +
  geom_point()

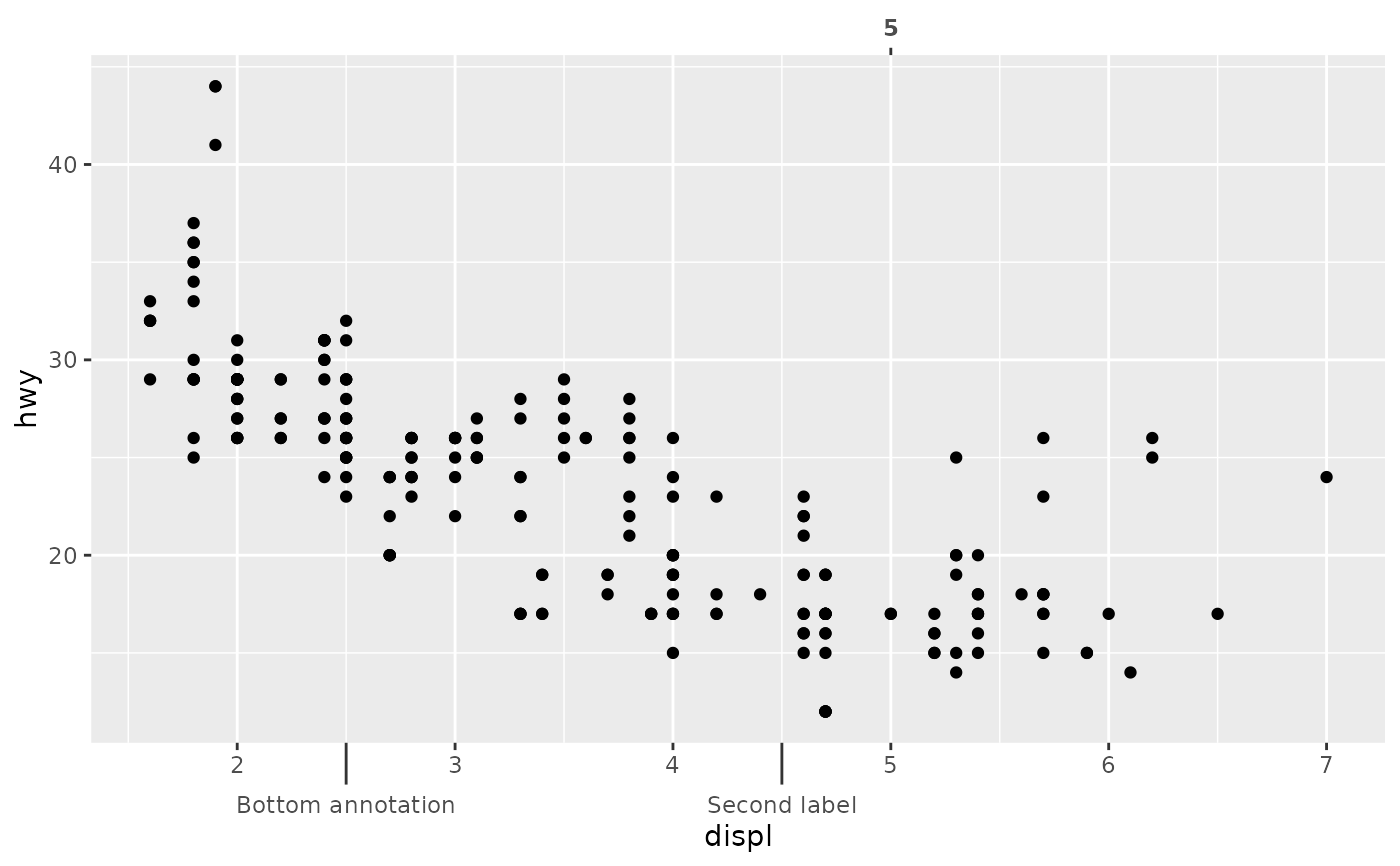

# Typical use
p +
  annotate_top(5, face = "bold") +
  annotate_bottom(c(2.5, 4.5), c("Bottom annotation", "Second label"))

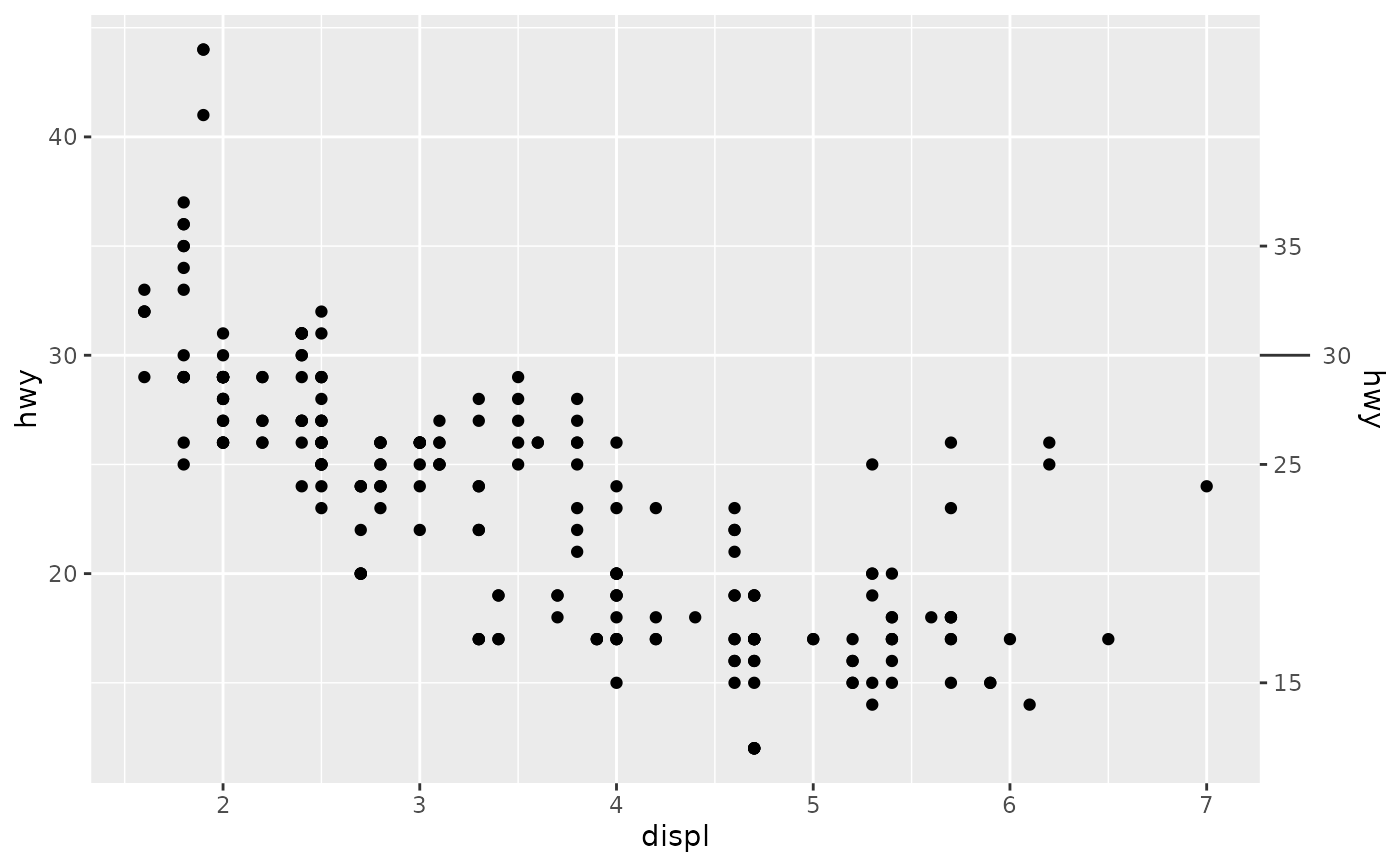

# If you want to combine them with secondary axes, you must
# set the `inner` argument manually.
p +
  scale_y_continuous(
    sec.axis = dup_axis(breaks = c(15, 25, 35))
  ) +
  annotate_right(30, inner = "axis")


# Use in theta axis

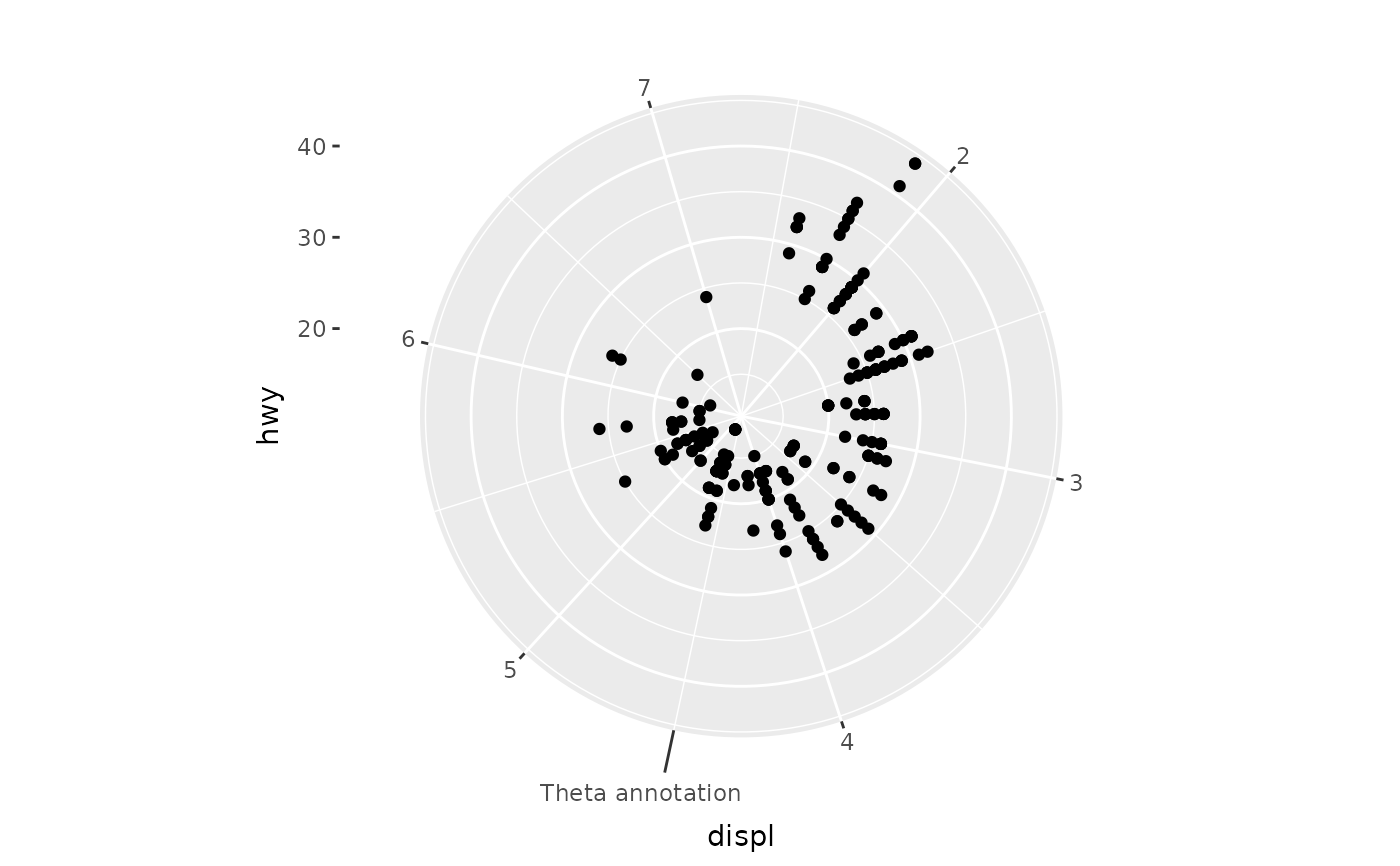

p + coord_radial() +
  guides(theta = guide_axis_annotation(4.5, "Theta annotation"))

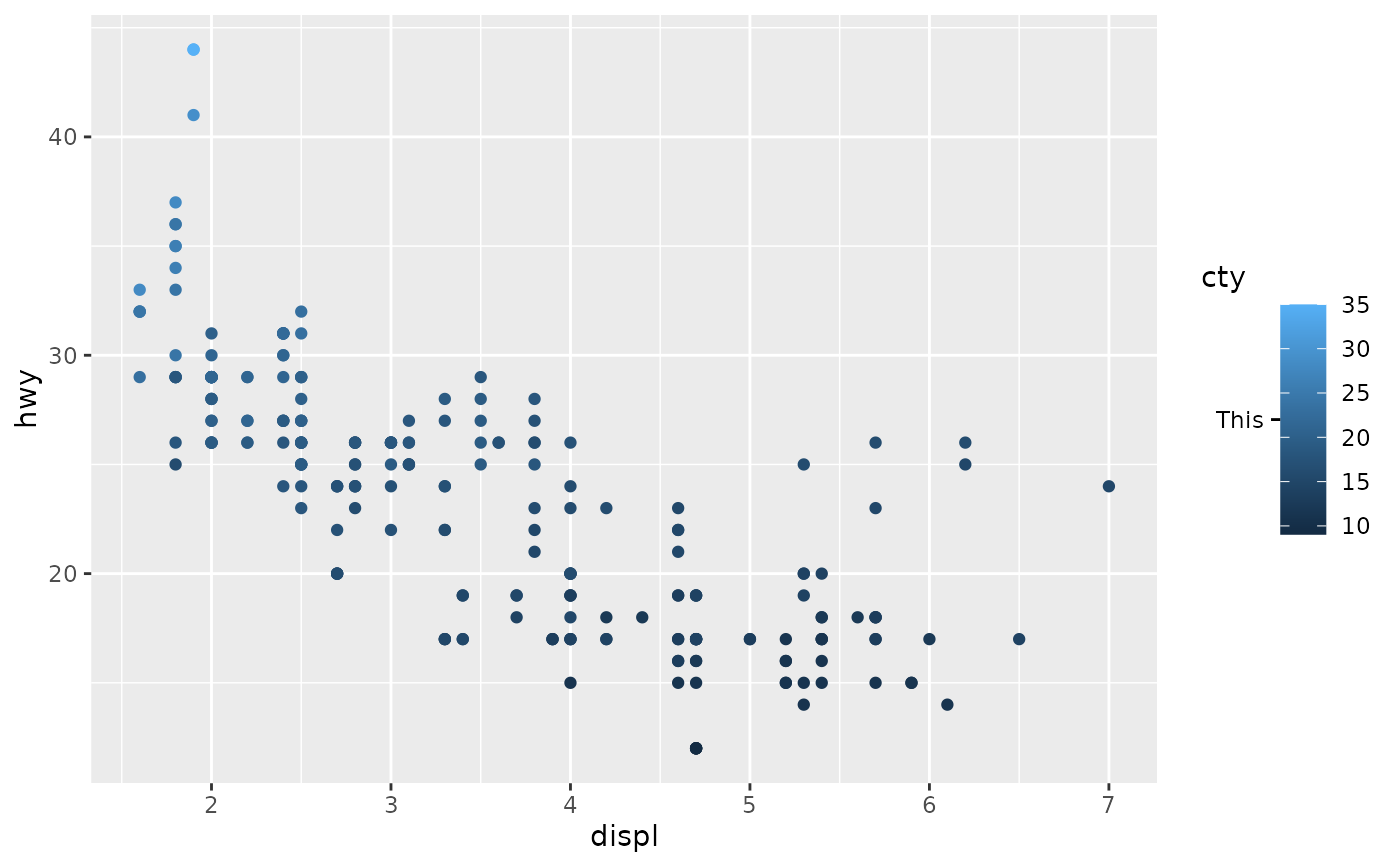

# Specialised use as part of other guides
# Note that `guide_colbar` imposes white inward ticks
# We can overrule these impositions with a replacement theme
p + aes(colour = cty) +
  guides(colour = guide_colbar(
    second_guide = guide_axis_annotation(22, "This", theme = theme_gray())
  ))
