Side-plot axis

Displays an axis-sharing plot to the side of the panel.

Usage

guide_axis_plot(
  plot,
  title = NULL,
  size = unit(2, "cm"),
  reposition = TRUE,
  theme = theme_sub_legend(position = "none"),
  position = waiver()
)

Arguments

plot

A <ggplot> object, subject to limitations listed in the 'Details' section. Alternatively, a <function> that takes the scale as argument and returns a <ggplot> object.

title

One of the following to indicate the title of the guide:

• A <character[1]> or <expression[1]> to set a custom title.

• NULL (default) to not display any title.

• waiver() to take the name of the scale object or the name specified in labs() as the title. Please note that plot will still display a title unless instructed otherwise. To avoid duplicated titles, the default is to have no title for the guide.

size

An absolute <unit> to set the size of the plot panel in the orthogonal direction.

reposition

A <logical[1]>. If TRUE (default) the position argument of this guide will be propagated to the position scale bestowed upon the plot argument. If FALSE, that position scale will retain its original position field. Setting reposition = TRUE will generally tend to point axes outwards.

theme

A <theme> object to style the guide individually or differently from the plot's theme settings. The order in which themes are applies is as follows: (1) the main plot's theme (2) the plot argument's theme and (3) this theme argument. The default theme argument suppresses legends.

position

A <character[1]> giving the location of the guide. Can be one of "top", "bottom", "left" or "right".

Value

A <Guide> object.

Details

This guide is subject to the following limitations:

• The x- or y-scale of the main plot override the corresponding scale in the plot argument. This ensures that the scales line up. The plot argument should not have the relevant scale.

• The plot argument cannot have custom facets. It must use the default facet_null().

• This guide cannot be used in non-linear coordinate systems of the main plot and does not support non-linear coordinate systems in the plot argument.

• The theme(panel.widths, panel.heights) setting in the plot argument will be ignored in favour of the size argument.

• There is no mechanism to accommodate extra space needed by plot components outside the panel. This applies in the horizontal direction for x-axes and the vertical direction for y-axes. You may need to manually tweak the theme(plot.margin) setting of the main plot to accommodate these components.

See also

Other standalone guides: guide_axis_base(), guide_axis_dendro(), guide_axis_nested(), guide_circles(), guide_colbar(), guide_colring(), guide_colsteps(), guide_legend_base(), guide_legend_cross(), guide_legend_group(), guide_legend_manual()

Examples

# A standard plot
main_plot <- ggplot(mpg, aes(displ, hwy, colour = drv)) +
  geom_point()

# Simple plot sharing the x-variable
x_plot <- ggplot(mpg, aes(displ, fill = drv)) +
  geom_density(alpha = 0.7)

# Simple plot sharing the y-variable
y_plot <- ggplot(mpg, aes(drv, hwy, colour = drv)) +
  geom_boxplot()

# Typical use

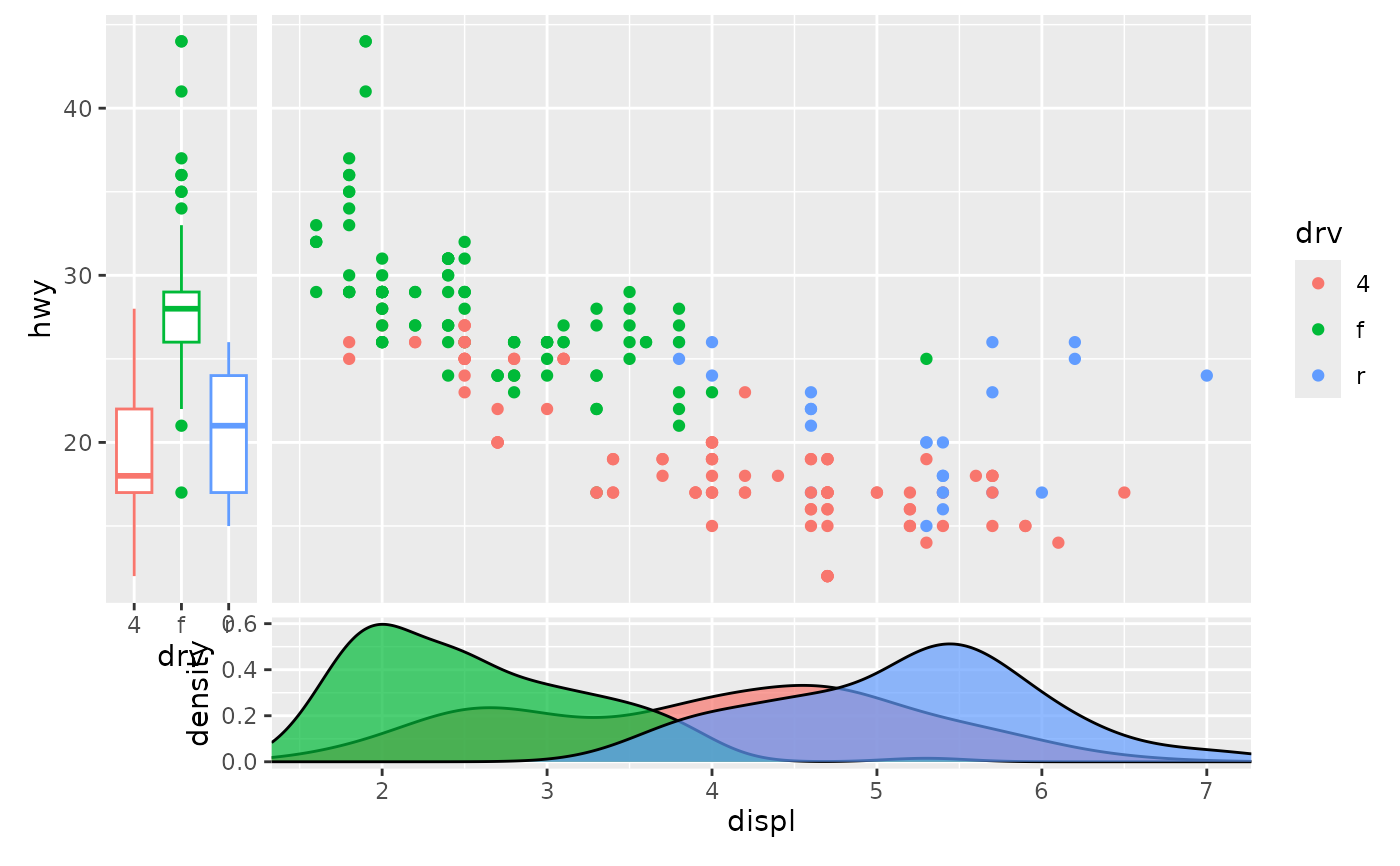

main_plot + guides(
  x = guide_axis_plot(x_plot),
  y = guide_axis_plot(y_plot)
)

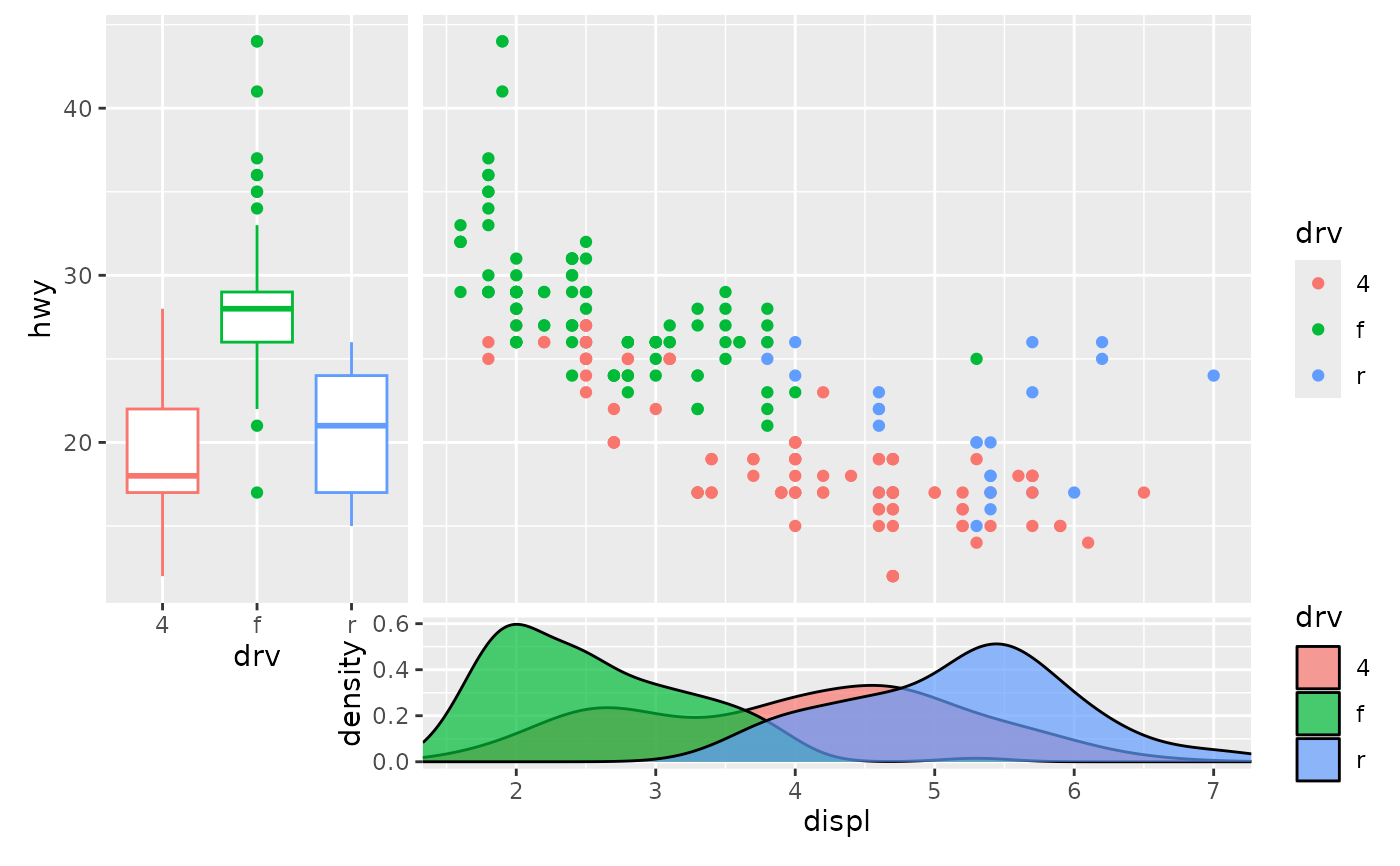

main_plot + guides(
  # Include `fill` legend by overriding theme
  x = guide_axis_plot(x_plot, theme = NULL),
  # Change the size of the side-plot
  y = guide_axis_plot(y_plot, size = unit(4, "cm"))
)


# Components outside panels may need to be manually acommodated

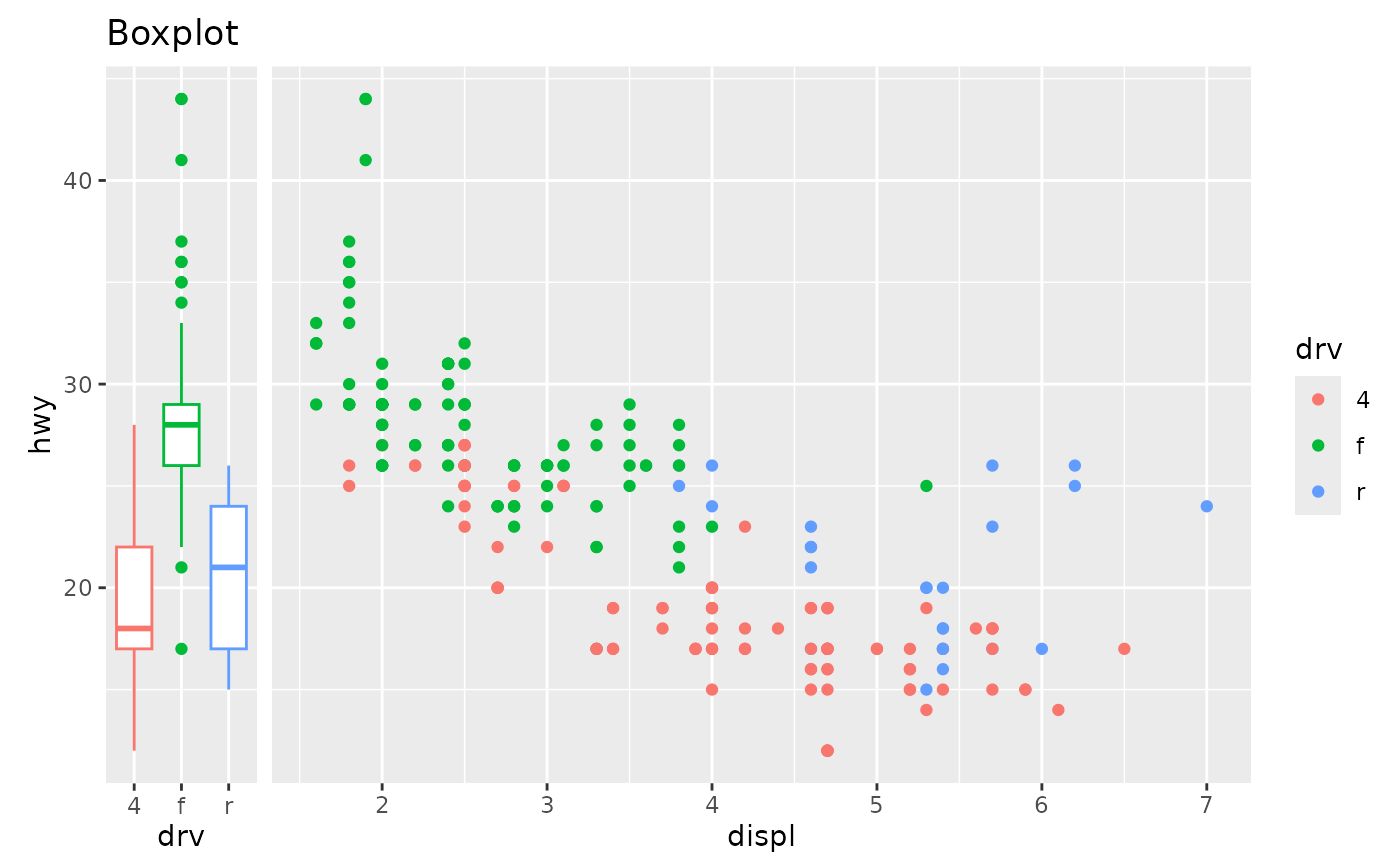

main_plot +
  guides(y = guide_axis_plot(y_plot + labs(title = "Boxplot"))) +
  theme(plot.margin = margin(25, 5.5, 5.5, 5.5))


# Recursive use of this guide

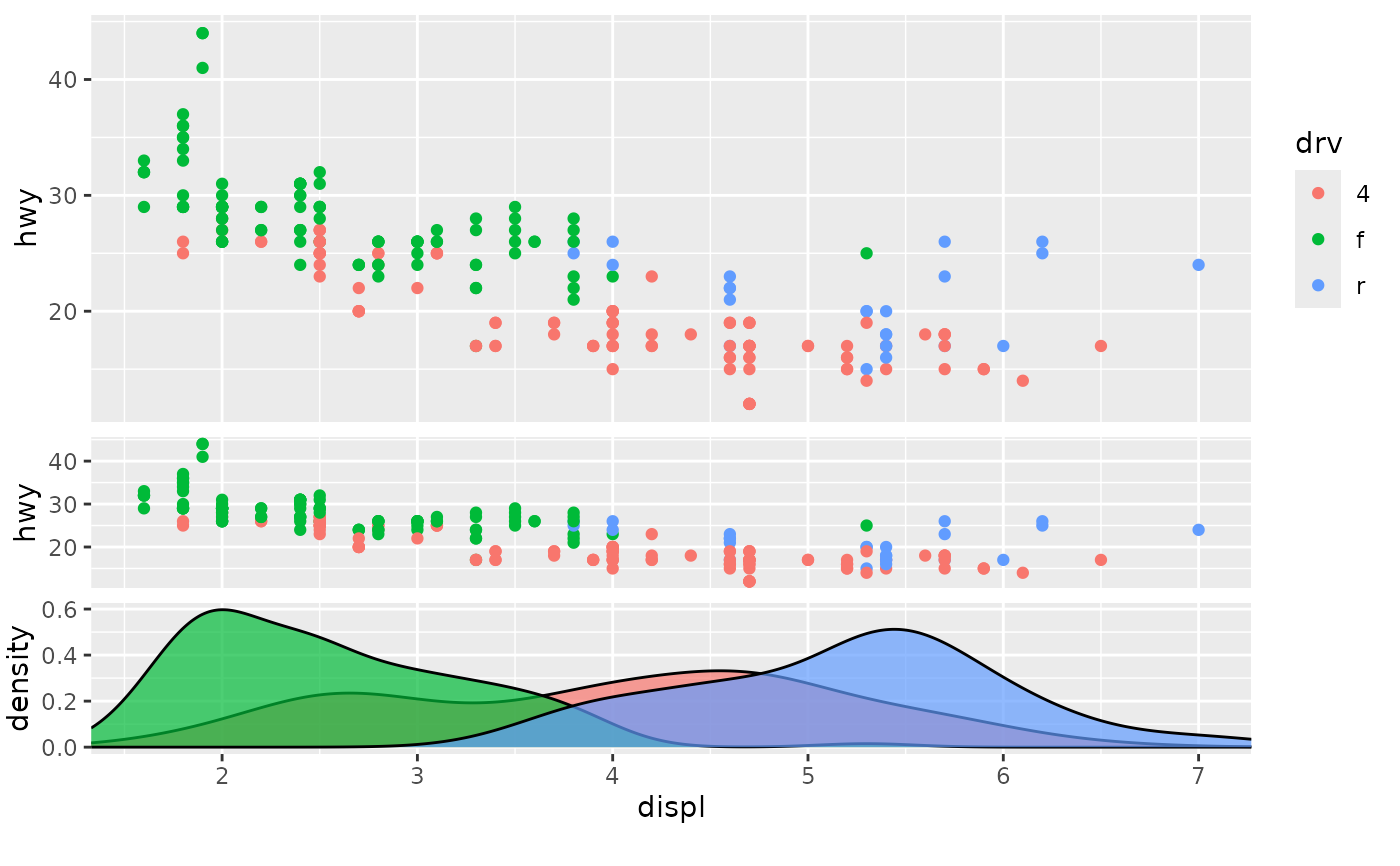

main_plot + guides(x = guide_axis_plot(
  main_plot + guides(x = guide_axis_plot(x_plot))
))
