A guided tour

library(legendry)
#> Loading required package: ggplot2
library(scales)

This article walks through all full guide extensions to give a broad overview of the ‘easy’ way to make use of legendry. Rest assured, there are harder ways, but these will be covered in a separate article.

Axes

Axes truly are the bread and butter of guides. Naturally, axes shine brightest as guides for positions like x and y but can moonlight as auxiliary guides as well.

Where (not) to apply

In legendry, the staple axis is guide_axis_base(). At a first glance, these axes are utterly unremarkable and very much mirror ggplot2::guide_axis() by design.

# Turn on axis lines
theme_update(axis.line = element_line())

# A standard plot
standard <- ggplot(mpg, aes(displ, hwy)) +
  geom_point() +
  labs(
    x = "Engine Displacement (Litres)",
    y = "Highway Miles per Gallon"
  )

standard + guides(
  x = "axis_base",
  y = "axis_base"
)

In terms of novelty, the only ‘extra’ option these axes offer is to display bidirectional tick marks.

p <- standard +
  scale_x_continuous(guide = guide_axis_base(bidi = TRUE)) +
  scale_y_continuous(guide = guide_axis_base(bidi = TRUE))
p

However, guide_axis_base() is more flexible than ggplot2::guide_axis(). In ggplot2, you’d typically have to switch to ggplot2::guide_axis_theta() to display an axis for the theta coordinate of a polar plot. The custom axis knows how to fit into polar coordinates, so no such fuss is needed when switching to polar coordinates.

p + coord_radial(start = 1.25 * pi, end = 2.75 * pi)

Argueably, the custom guide is a little bit too flexible. It has exactly no scruples in displaying arbitrary continuous aesthetics, like colour in the plot below. As you can see, it is not informative as a colour guide and for this reason I’d advice against it. Why this unadvised yet possible is a topic that resurfaces later in this article.

standard + aes(colour = cty) +
  guides(colour = "axis_base")

In summary, guide_axis_base() is a flexible guide that can be used in any and all position aesthetic, and can (but should not) be used for other continuous aesthetics.

Nested axes

Currently, there is exactly 1 ‘novelty’ axis and that is guide_axis_nested(). Let’s suppose we have ‘nested’ data, which for our purposes just means that discrete variables have some kind of categories or interactions to them that can be laid out in a nested fashion. A category for categories, if you will.

In the example below we have three super-categories ‘Drink’, ‘Fruit’ and ‘Vehicle’ which will have more granular categories like ‘Coffee’ and ‘Pear’ that belong to the super-categories. We can use the interaction() function to paste together the name of the inner category with the name of the outer category.

df <- data.frame(
  item = c("Coffee", "Tea", "Apple", "Pear", "Car"),
  type = c("Drink", "Drink", "Fruit", "Fruit", "Vehicle"),
  amount = c(5, 1, 2, 3, 1)
)

plain <- ggplot(df, aes(interaction(item, type), amount)) +
  geom_col()
plain + guides(x = "axis_nested")

Instead of just relying on formatting the labels correctly for splitting, you can also manually annotate the outer categories. To do this, we can use the key_range_manual() function to constructs the brackets as we see fit.

my_key <- key_range_manual(
  start = c("Coffee", "Apple"),
  end   = c("Tea", "Pear"),
  name  = c("Drinks", "Fruits"),
  level = 1
)

ggplot(df, aes(item, amount)) +
  geom_col() +
  scale_x_discrete(
    limits = df$item,
    guide = guide_axis_nested(
      regular_key = "auto",
      key = my_key
    )
  )

Brackets

To change the style of the range indicators, you can choose a different bracket setting. The theme elements legendry.bracket and legendry.bracket.size control the styling and size of the line. These settings have a shortcut in theme_guide().

plain + guides(x = guide_axis_nested(bracket = "curvy")) +
  theme_guide(
    bracket = element_line(colour = "blue"),
    bracket.size = unit(3, "mm")
  )

The brackets can be provided as a string naming a bracket function, like "curvy" that invokes bracket_curvy(). Below follows an overview of all the build-in bracket shapes.

brackets <- list(
  "atan"    = bracket_atan(),
  "chevron" = bracket_chevron(),
  "curvy"   = bracket_curvy(),
  "line"    = bracket_line(),
  "round"   = bracket_round(),
  "sigmoid" = bracket_sigmoid(),
  "square"  = bracket_square()
)

brackets <- cbind(
  as.data.frame(do.call(rbind, brackets)),
  shape = factor(rep(names(brackets), lengths(brackets) / 2), names(brackets))
)

ggplot(brackets, aes(x, y)) +
  geom_path() +
  facet_wrap(~ shape) +
  coord_equal()

Quite possibly, there might be bracket shapes you want to use, but aren’t built into legendry. Luckily, we can build custom brackets, using a numeric matrix that:

• Has 2 columns corresponding to the x and y coordinates.
• Has at least 2 rows.
• Only has values between 0 and 1.

The x-coordinate will be stretched along the axis, whereas y will be squished to fit the legendry.bracket.size theme setting. A custom bracket can just be provided to the bracket argument.

zigzag <- cbind(
  x = seq(0, 1, length.out = 20),
  y = rep(c(0, 1), length.out = 20)
)

plain + guides(x = guide_axis_nested(bracket = zigzag))

Boxes

Alternatively, it is also possible to forego brackets altogether and use boxes instead.

plain + guides(x = guide_axis_nested(type = "box"))

Customising

You needn’t strictly use guide_axis_nested() with discrete data: you can use it with continuous data as well. However, you’d need to provide a manual ranged key, such as one created by key_range_manual()/key_range_map().

presidents <- key_range_map(presidential, start = start, end = end, name = name)

eco <- ggplot(economics, aes(date, unemploy)) +
  geom_line() +
  labs(y = "Unemployment")

eco + guides(x = guide_axis_nested(key = presidents))

To customise the different depths of the bracketed text, you can give a list of text elements to the levels_text argument.

presidents$.level <- rep(1:3, length.out = nrow(presidents))

eco + guides(x = guide_axis_nested(
  key = presidents,
  levels_text = list(
    element_text(face = "bold"),
    NULL,
    element_text(face = "italic")
  )
))

Alternatively, you can tailor many of the usual text formatting options by encoding these in the key.

presidents <- key_range_map(
  presidential,
  start = start, end = end, name = name,
  level = rep(1:4, length.out = nrow(presidential)),
  colour = ifelse(party == "Republican", "tomato", "dodgerblue")
)

eco + guides(x = guide_axis_nested(key = presidents))

Colours

The colour and fill aesthetics are wonderful to build guides for, as they can apply to pretty much anything. First, we’ll take a gander at some variants of colour bars before we gander at rings.

Bars and steps

Two variants for colour guides exist in {legendry}:

1. guide_colbar() that reflects guide_colourbar()
2. guide_colsteps() that reflects guide_coloursteps().

When used in a standard fashion, they look very similar to their vanilla counterparts.

standard <- standard +
  aes(colour = cty) +
  labs(colour = "City Miles\nper Gallon")

standard +
  scale_colour_viridis_c(guide = "colbar") +
  labs(title = "Custom colour bar")

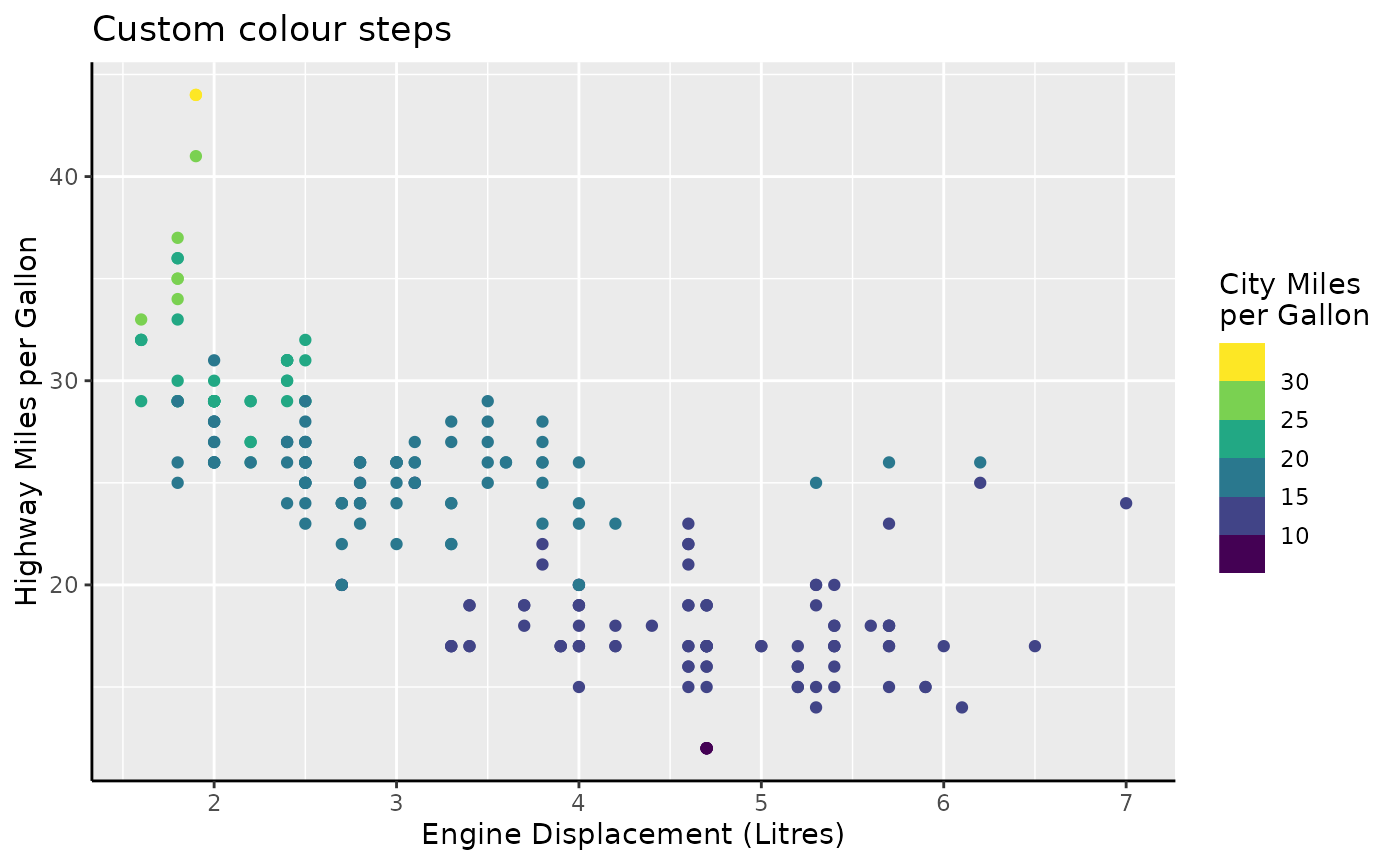

standard +
  scale_colour_viridis_b(guide = "colsteps") +
  labs(title = "Custom colour steps")

Please note that the following paragraphs apply equally to guide_colsteps(), but we’ll take guide_colbar() for examples.

Caps

The thing that sets these guides apart is that they have indicators for when the data goes out-of-bounds. The most common case where you have out-of-bounds data, is when you set the scale limits to be narrower than the data range. In the plot below, the cty variable has a few observation below the lower limit of 10, and a few above the upper limit of 30. Typically, these are displayed in the na.value = "grey" colour. The bars display that these data are out-of-bounds by the gray ‘caps’ at the two ends of the bar.

standard +
  scale_colour_viridis_c(
    limits = c(10, 30),
    guide = "colbar"
  )

You can change the out-of-bounds strategy, the oob argument of the scale, to have the caps reflect the colour that out-of-bounds data has acquired.

standard +
  scale_colour_viridis_c(
    limits = c(10, 30), oob = oob_squish,
    guide = "colbar"
  )

You can also force the caps to appear, even when there are no out-of-bounds data, or force the cap colour to be consistent with the scale.

standard +
  scale_colour_viridis_c(
    guide = guide_colbar(
      show = c(FALSE, TRUE),
      oob = "squish"
    )
  )

The shape of the cap needn’t be a triangle. You can set the shape to any of the built-in cap shapes.

standard +
  scale_colour_viridis_c(
    guide = guide_colbar(
      show = TRUE, oob = "squish",
      shape = "arch"
    )
  )

The caps can be provided as a string naming a cap function, like "arch" that invokes cap_arch(). Below follows an overview of all the build-in cap shapes.

caps <- list(
  none = cap_none(),
  triangle = cap_triangle(),
  round = cap_round(),
  arch = cap_arch(),
  ogee = cap_ogee()
)

caps <- cbind(
  as.data.frame(do.call(rbind, caps)),
  shape = factor(rep(names(caps), lengths(caps) / 2), names(caps))
)

ggplot(caps, aes(x, y)) +
  geom_path(arrow = arrow()) +
  facet_wrap(~ shape) +
  coord_equal()

It is most certainly possible to use shapes of your own imagination as well. To provide your own shape, use a numeric matrix that:

• Has 2 columns corresponding to the x and y coordinates.
• Has at least 2 rows.
• Only has positive values for the 2nd column (y).
• Start at the (0, 0) coordinate.
• End at the (1, 0) coordinate.

You can see in the shapes above that these requirements all hold for the built-in shapes. Such a matrix can be given to the shape argument of the guide.

hourglass_cap <- cbind(
  x = c(0, 1, 0, 1),
  y = c(0, 1, 1, 0)
)

standard +
  scale_colour_viridis_c(
    guide = guide_colbar(
      show = TRUE, oob = "squish",
      shape = hourglass_cap
    )
  )

Side-guides

The colour bars come with a small party trick: the two rows of tick marks are separate axes masquerading as parts of the colour bar. It becomes easier to see once you wash away their make-up with vanilla = FALSE.

standard +
  scale_colour_viridis_c(
    guide = guide_colbar(vanilla = FALSE)
  )

This trick allows you to tailor the colour bar to your liking on separate sides. You can use this to invoke any of the tricks described in the axis section, like setting minor ticks, or swap out axes for an annotation-primitive like primitive_bracket().

brackets <-
  key_range_manual(
    start = c(9, 25),
    end   = c(19, 30),
    name  = c("A", "B")
  ) |>
  primitive_bracket(bracket = "square")

standard +
  scale_colour_viridis_c(
    minor_breaks = breaks_width(1),
    guide = guide_colbar(
      first_guide = guide_axis_base("minor"),
      second_guide = brackets
    )
  )

Rings

Aside from bars and steps, there is also an option to show the colour as a ring. To understand why this might convenient, it can help to understand the type of data this is suitable for. A prime example of cyclical data can be the month of the year. The time between December and January is just one month, but when encoded numerically, the difference is 11 months. This problem can show itself sometimes in periodic data, like housing sales below.

housing <-
  ggplot(
    subset(txhousing, city == "Houston"),
    aes(date, volume, colour = month)
  ) +
  geom_line() +
  scale_y_continuous(
    name = "Total volume of sales",
    labels = dollar_format(scale = 1e-6, suffix = "M")
  ) +
  labs(
    x = "Date",
    colour = "Month"
  )

housing +
  scale_colour_viridis_c(limits = c(0, 12))

Every year we get a sharp colour transition in the winter. The remedy for this problem is to use a cyclical palette. The {scico} package offers some suitable cyclical palettes, like ‘romaO’, ‘vikO’, ‘bamO’, ‘corkO’ or ‘brocO’.

# Colours from scico::scico(12, palette = "romaO")
periodic_pal <-
  c("#723957", "#843D3A", "#97552B", "#B08033", "#CBB45D", "#D5DA99",
    "#B8DEC3", "#85C7CF", "#599FC4", "#4E73AB", "#5F4C81", "#723959")

housing +
  scale_colour_gradientn(colours = periodic_pal, limits = c(0, 12))

This is already much better, but the guide itself does a poor job of displaying the cyclical nature of months. To have this better reflected in the guide, you can use guide_colring().

housing +
  scale_colour_gradientn(
    colours = periodic_pal, limits = c(1, 13),
    breaks = 1:12,
    guide = "colring"
  )

The ‘thickness’ of the donut can be controlled by the legend.key.width parameter, which by default is 1/5^th of the diameter. The outer diameter of the ring is controlled by the legend.key.size parameter, but multiplied by 5 for consistency with the colour bar multiplier. Like custom colour bars, it is possible to set custom guides, but these are hoarded under the inner_guide and outer_guide to distinguish that they aren’t first or second.

housing +
  scale_colour_gradientn(
    colours = periodic_pal, limits = c(1, 13),
    breaks = 1:12, minor_breaks = breaks_width(0.25),
    guide = guide_colring(
      outer_guide = guide_axis_base("minor"),
      inner_guide = "none"
    )
  ) +
  theme(
    legend.key.width = rel(2.5), # fill to center
    legend.key.size = unit(0.5, "cm") # actual size is 0.5 * 5 = 2.5 cm
  )

Legends

In addition to the full guides above, legendry also has three variants on the guide_legend() legend. The first is guide_legend_base(), which is very similar to ggplot2::guide_legend(), but offers a design argument that lets you put keys in arbitrary cells of a rectangular layout.

design <- matrix(NA, 3, 3)
diag(design) <- 1:3

standard +
  aes(colour = drv) +
  guides(colour = guide_legend_base(design = design))

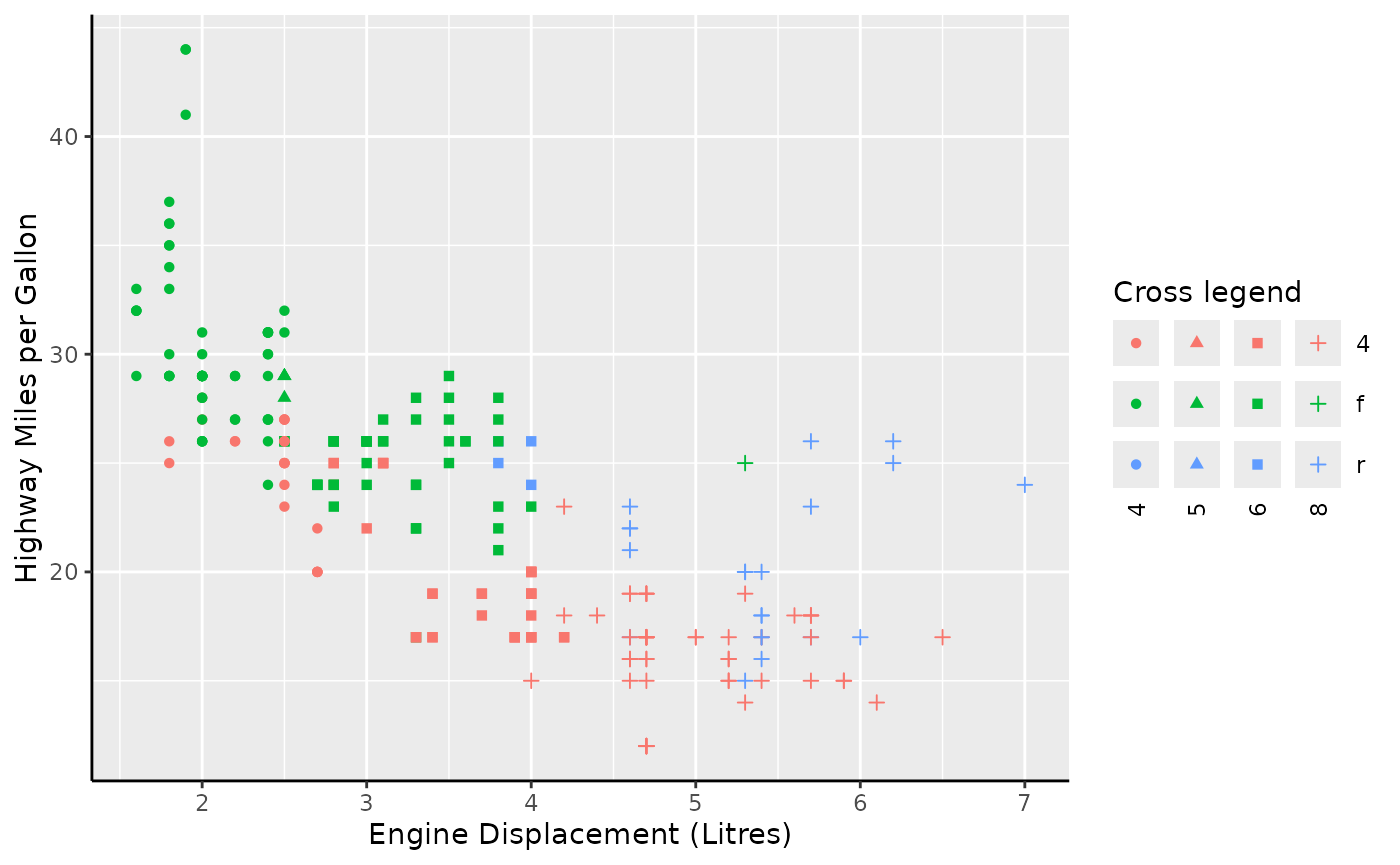

Secondly, guide_legend_cross() will let you ‘cross’ two variables, that is; generate a legend key for every combination of the two variable levels. Because legends are only merged if they share the same title, it is wise to construct a common legend setting a key strategy and title.

common <- guide_legend_cross(key = "auto", title = "Cross legend")

standard +
  aes(colour = drv, shape = factor(cyl)) +
  guides(colour = common, shape = common)

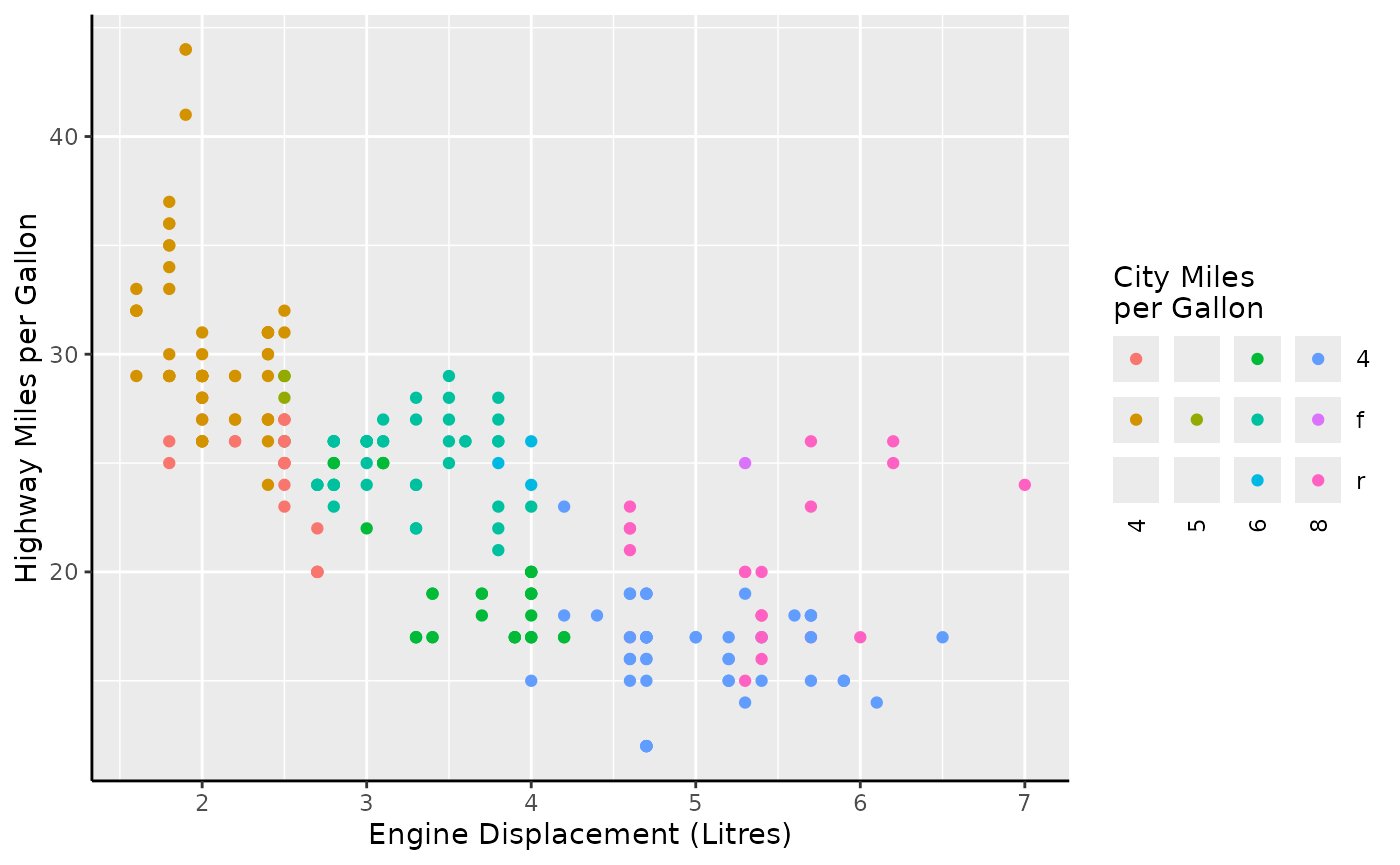

Alternatively, you can also use the guide for a compound variable that already combines two variables. Note that missing combinations are correctly omitted in this case.

standard +
  aes(colour = paste(cyl, drv)) +
  guides(colour = "legend_cross")

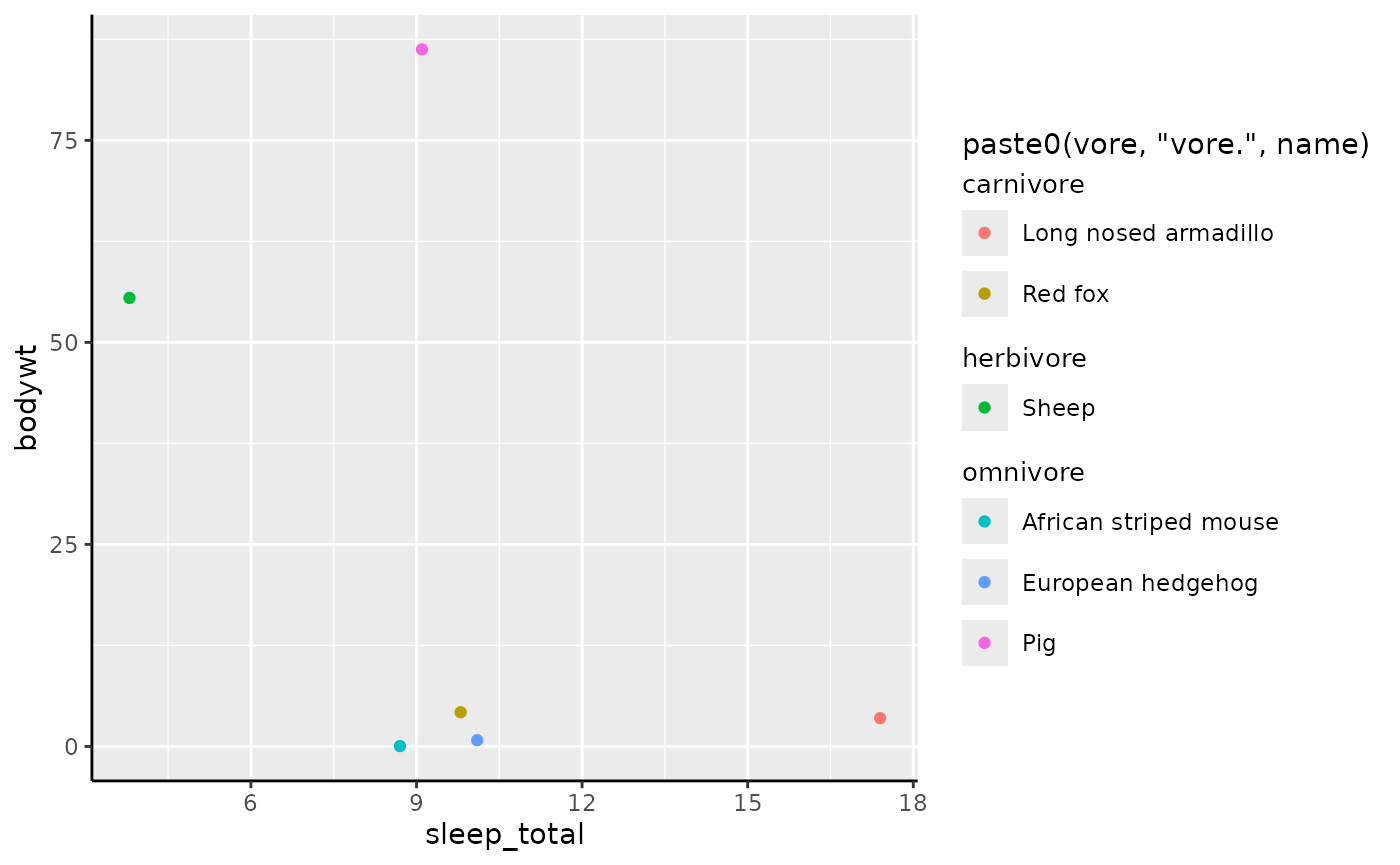

Lastly, there is also a legend that is suitable for displaying groups. The guide_legend_group() legend adds additional titles that separate groups. By default, it splits labels on the first non-alphanumeric character, but you can also use key_group_lut() to indicate groups.

set.seed(42)
i <- sample(nrow(msleep), 6)

ggplot(msleep[i, ], aes(sleep_total, bodywt)) +
  geom_point(aes(colour = paste0(vore, "vore.", name))) +
  guides(colour = "legend_group")
