Symbol and upset axis guide

These axis guides can be used for set annotations of discrete categories. The upset guide displays set intersections in matrix and is can be used to replace Venn/Euler diagrams. The symbol guide also displays a matrix of symbols, but requires manually specifying them.

Usage

guide_axis_symbols(
  key = NULL,
  connect = NULL,
  title = waiver(),
  theme = NULL,
  override.aes = list(),
  position = waiver(),
  direction = NULL,
  call = NULL
)

guide_axis_upset(
  key = "upset",
  connect = "perpendicular",
  title = waiver(),
  theme = NULL,
  override.aes = list(),
  position = waiver(),
  direction = NULL,
  call = NULL
)

Arguments

key

One of the following:

• An upset key specification. For guide_axis_upset, specifying a <character[n]> is also passed to the key_upset(order) argument. An exception is made when the string is a valid key specification.

• A symbol key specification.

connect

One of the following:

• A <data.frame> containing the following columns:

  • value_start, value_end Scale break values or <numeric[n]> values connecting along the axis.

  • level_start, level_end must be <integer[n]> values connecting perpendicular to the axis.

  • (Optional) columns for graphical parameters: colour, linewidth and linetype.

• A <character[1]> keyword for upset guides or logical symbols:

  • "perpendicular": connect TRUE symbols (set membership for upset) perpendicular to the axis.

  • "parallel": connect TRUE symbols parallel to the axis. This is not appropriate for upset guides.

title

One of the following to indicate the title of the guide:

• A <character[1]> or <expression[1]> to set a custom title.

• NULL to not display any title.

• waiver() (default) to take the name of the scale object or the name specified in labs() as the title.

theme

A <theme> object to style the guide individually or differently from the plot's theme settings. The theme argument in the guide overrides and is combined with the plot's theme.

override.aes

A named <list> specifying graphical properties of points to apply to symbols. Every element must either be length 1 or match the number of symbols determined by the key. 3 symbols are used in upset guides or for logical symbolism. Otherwise the number of unique values to the key_symbols(symbol) argument determines the number of symbols.

position

A <character[1]> giving the location of the guide. Can be one of "top", "bottom", "left" or "right".

direction

A <character[1]> indicating the direction of the guide. Can be on of "horizontal" or "vertical".

call

A call to display in messages.

Value

A <Guide> object.

Details

The upset axis does not predetermine the order the categories. If any sorting based on set size needs to occur, the scale is the correct tool to handle this task.

Styling options

Several styling options are provided in the theme, while individualised styling is discussed below the table.

Theme setting	Type	Description
legendry.axis.subtitle	element_text()	Titles on the side labelling levels.
legendry.axis.subtitle.position	<character[1]>	One of "top", "right", "bottom" or "left".
legendry.zebra.light	element_rect()	Row shading.
legendry.zebra.dark	element_rect()	Alternate row shading.
legendry.table.spacing	rel()/unit()	Padding between levels.
legendry.point	element_point()	Styling of the symbols
legendry.connector	element_line() Drawing the connect lines.

Moreover, styling options per group of symbols can be set via the override.aes argument. These override theme settings.

Styling options per symbol can be set in key_symbols() via the ... argument. These override theme settings and 'per group' settings.

Styling options per line in line connectors can be set by including graphical parameters as columns in the connect = <data.frame> argument. These override theme settings.

The context-agnostic alternative to using theme() is to use theme_guide():

guide_axis_symbols(theme = theme_guide(
  subtitle = element_line(),
  subtitle.position = "left",
  zebra.light = element_rect(),
  zebra.dark = element_rect(),
  table.spacing = unit(5, "mm"),
  point = element_point(),
  connector = element_line()
))

See also

Other standalone guides: guide_axis_annotation(), guide_axis_base(), guide_axis_dendro(), guide_axis_nested(), guide_axis_plot(), guide_circles(), guide_colbar(), guide_colring(), guide_colsteps(), guide_legend_base(), guide_legend_cross(), guide_legend_group(), guide_legend_manual()

Examples

# Example plot
p <- ggplot(mpg, aes(paste(drv, year))) +
  geom_bar()

# A standard upset axis might not have right order of levels

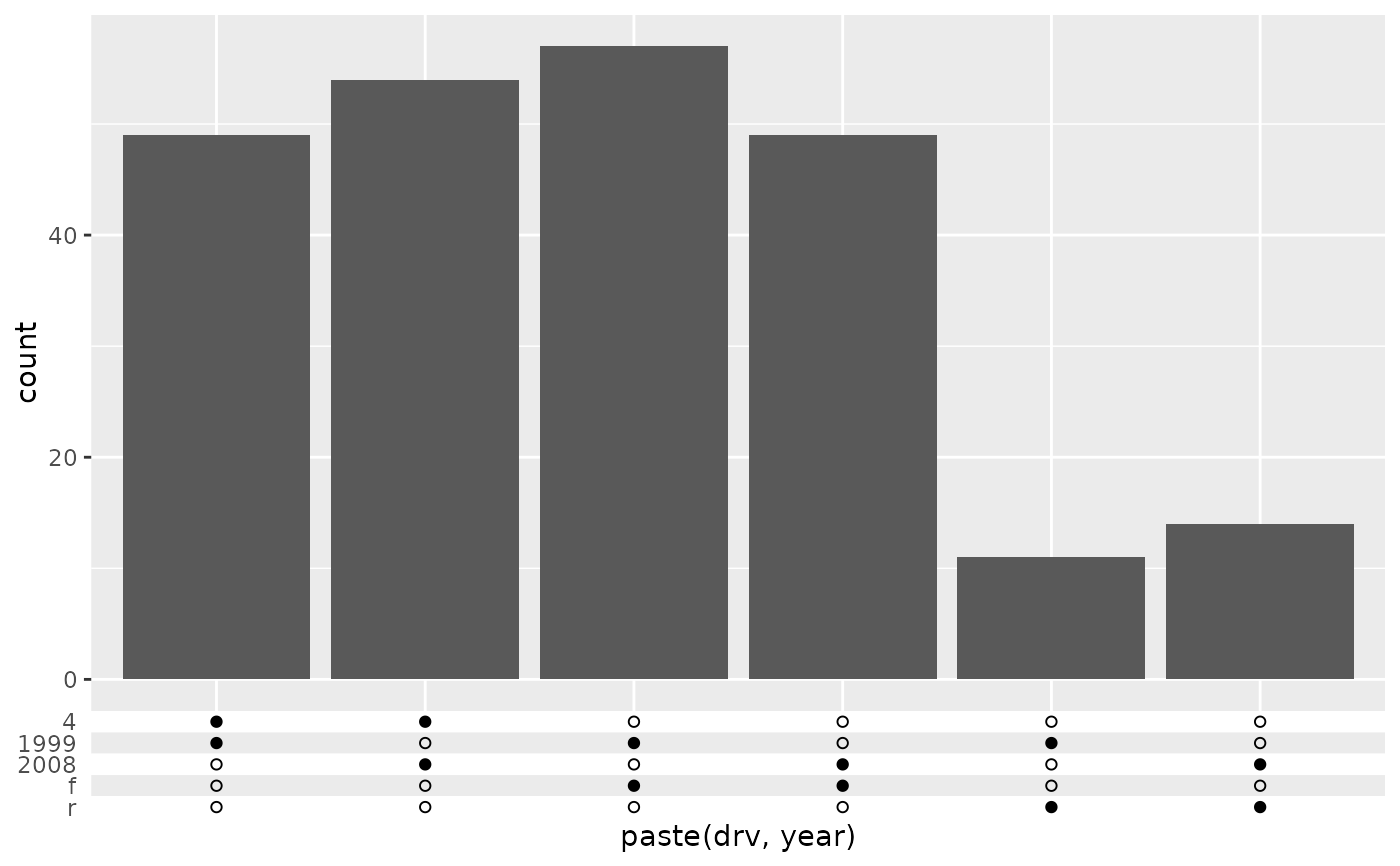

p + guides(x = "axis_upset")


# The levels can be manually adjusted to taste
p + guides(x = guide_axis_upset(c("1999", "2008", "4", "f", "r")))


# The connections can be turned off to just show symbols
p + guides(x = guide_axis_upset(connect = NULL))


# The style can be changed per group of symbols.
# We need to give 3 colours to also cover NA-breaks
p + guides(x = guide_axis_upset(
  override.aes = list(colour = c("purple", "orange", NA))
))

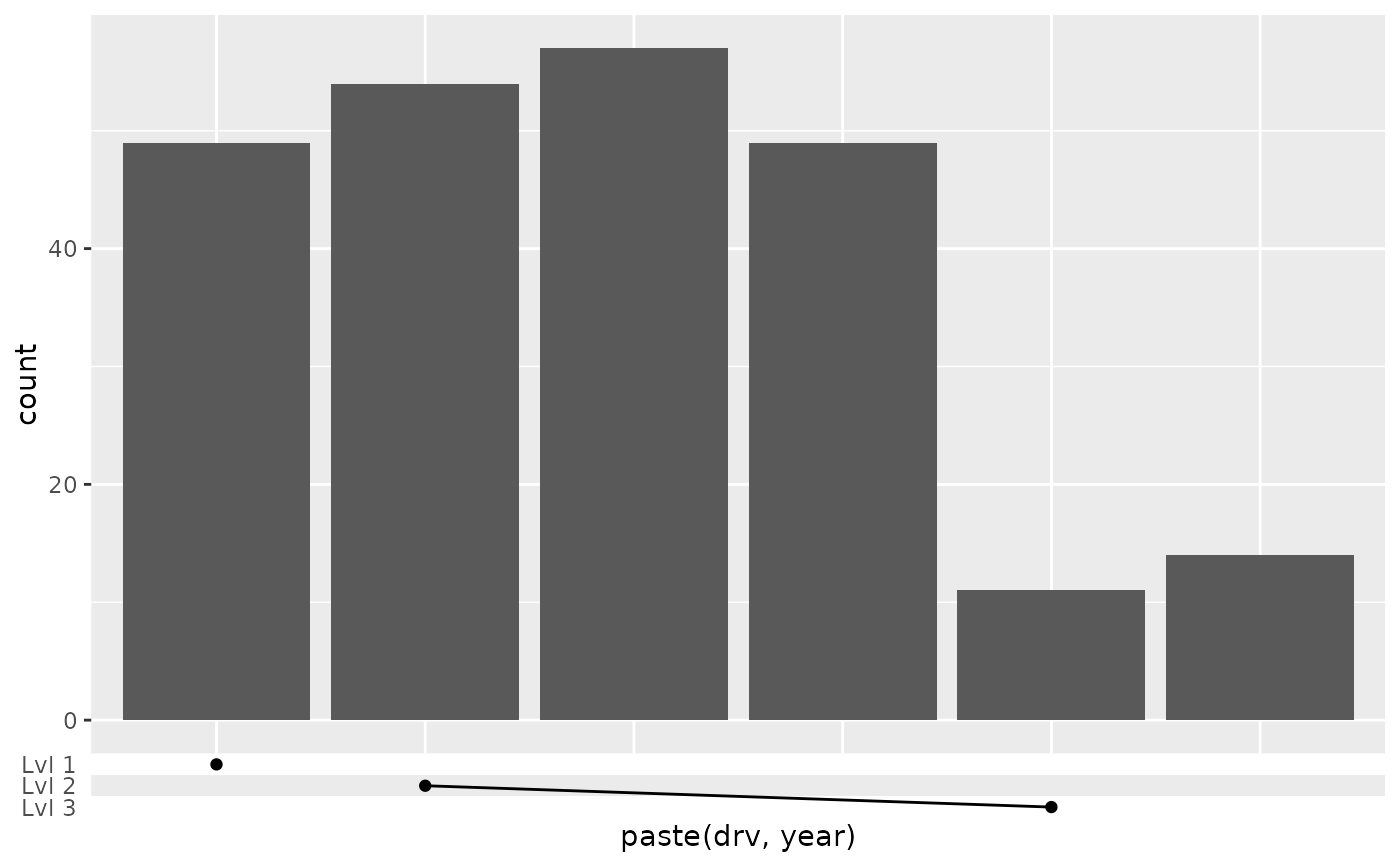

# For symbol guides you have to manually specify where you want symbols and
# connection lines appear.
p + guides(x = guide_axis_symbols(
  key_symbols(
    aesthetic = c("4 1999", "4 2008", "r 1999"),
    level = c("Lvl 1", "Lvl 2", "Lvl 3")
  ),
  connect = data.frame(
    value_start = "4 2008", value_end = "r 1999",
    level_start = 2, level_end = 3
  )
))
