Arrow parameters

This vignette walks through the various options present in geom_arrow() and friends. First, let’s setup a very basic plot in which we can show what the parameters are doing.

library(ggarrow)
#> Loading required package: ggplot2

p <- ggplot(data.frame(x = c(0, 1), y = 0), aes(x, y)) +
  geom_point(colour = c(2, 4), size = 3) +
  geom_text(
    aes(label = c("start\n'fins'", "end\n'head'")),
    colour = c(2, 4), vjust = -1
  )

Aesthetics

There are 3 aesthetics that depart from the typical geom_path() behaviour. The first one is the linewidth aesthetic, in that it can vary within a path.

p + geom_arrow(linewidth = c(0, 3))

This all means that you could in theory display a kernel density estimate using an arrow, by remapping a computed density aesthetic to the linewidth.

ggplot(faithful, aes(waiting)) +
  geom_arrow(
    stat = "density",
    aes(y = after_stat(0),
        linewidth = after_scale(ndensity * 20))
  )

The other two are the stroke_colour and stroke_width aesthetics. These can be used to outline the arrow.

p + geom_arrow(stroke_colour = "black", stroke_width = 1,
               colour = "white", linewidth = 5)

Heads, fins and middle arrows

This dealt with more thoroughly in another vignette. To briefly recap, an arrow comes in three parts: a head, a shaft and fins. All these parts are valid places to place ornaments.

Using arrow parts

The three different parts of an arrow can be populated with the arrow_head, arrow_fins and arrow_mid arguments. Whereas arrow_head and arrow_fins are pointed towards their respective path ends, the arrow_mid follows the forward orientation.

p + geom_arrow(
  arrow_head = arrow_head_wings(),
  arrow_mid  = arrow_head_wings(),
  arrow_fins = arrow_head_wings()
)

Setting sizes

The arrow sizes can be controlled by the length_head, length_fins and length_mid arguments. You can use a plain <numeric> to have the arrow size be relative to the linewidth aesthetic. Alternatively, you set the length in an absolute manner by providing a <grid::unit> object.

p + geom_arrow(
  arrow_head = arrow_head_wings(),
  arrow_mid  = arrow_head_wings(),
  arrow_fins = arrow_head_wings(),
  length_head = 10,
  length_fins = 4,
  length_mid  = unit(10, "mm")
)

Middle arrows

Middle arrows needn’t be on the middle. You can control where they are placed using the mid_place argument. It accepts input between [0-1], and represents the distance along the path where the arrows are drawn.

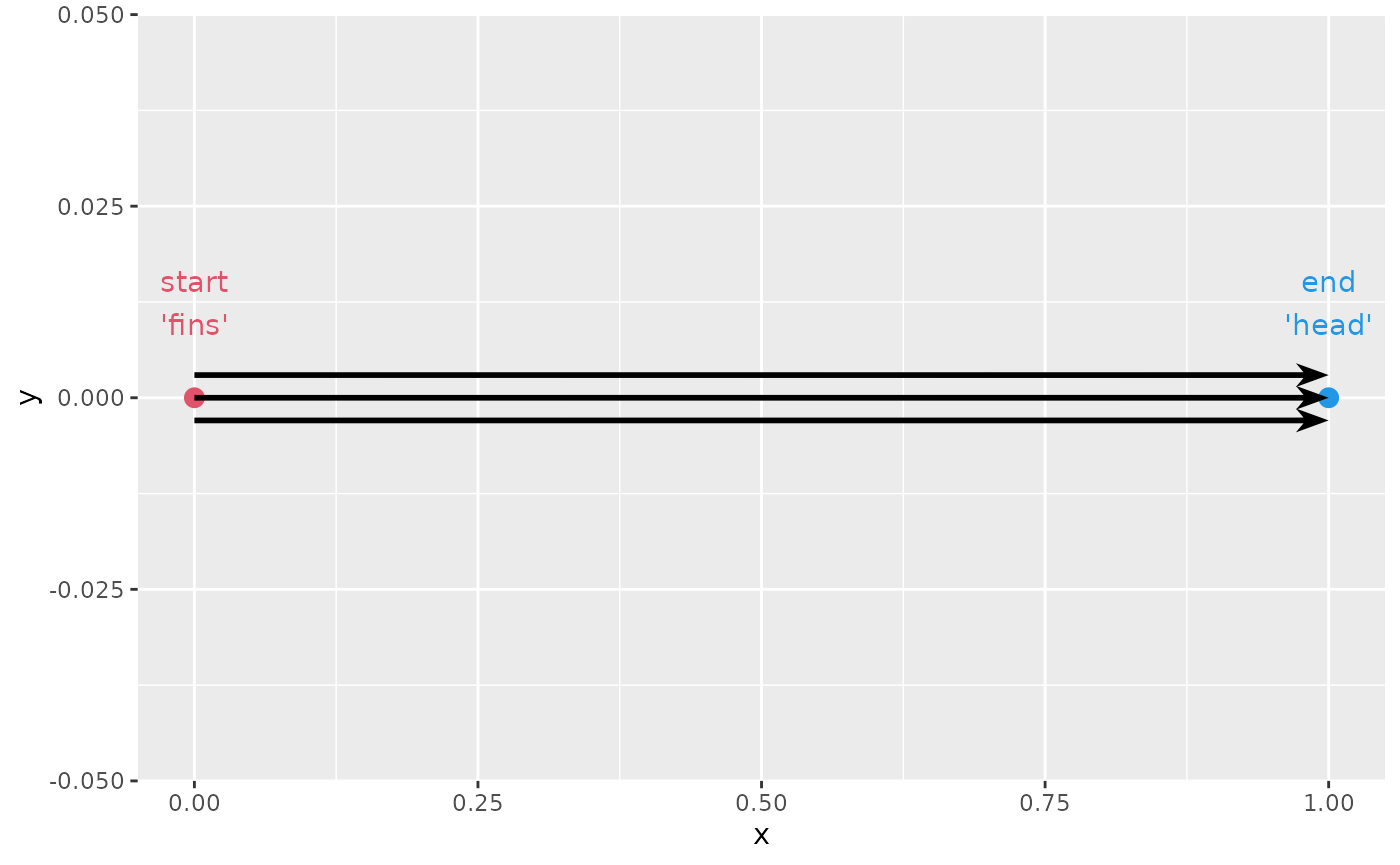

p + geom_arrow(
  arrow_head = NULL,
  arrow_mid  = arrow_head_wings(),
  mid_place  = c(0.33, 0.66)
)

You can swap the direction of middle arrows by providing negative numbers to the mid_place argument.

p + geom_arrow(
  arrow_head = NULL,
  arrow_mid  = arrow_head_wings(),
  mid_place  = c(0.16, -0.33, 0.66, -0.82)
)

One alternative to manually specifying positions, is to provide a distance between subsequent arrows. You can do this by giving a <grid::unit> instead of a <numeric>. Again, to change the direction of the middle arrows, you can set this to a negative unit.

p + geom_arrow(
  arrow_head = NULL,
  arrow_mid  = arrow_head_wings(),
  mid_place  = unit(-1, "cm")
)

Resection

Sometimes, you wouldn’t want your arrows to exactly touch the object that they’re pointing to. To prevent this, you can ‘resect’ the arrow to make it a bit shorter near the ends. You can provide the resect argument in millimetres to cut the path at both the heads and the fins of the arrow.

p + geom_arrow(resect = 5)

You can also control independently for the head and fins of the arrow how much resection is to be done with the resect_head and resect_fins arguments.

p + geom_arrow(resect_head = 10, resect_fins = 3)

A geom that does this automatically is geom_arrow_chain(). Normally, it has a default resect value of 1 millimeter, but if you turn this off and set the size appropriate for the start and end points we’ve drawn, you can see that it doesn’t overlap the points, but barely touches them.

p + geom_arrow_chain(size = 3, resect = 0)

Other parameters

Sometimes, you’ve already dodged the object to be pointed at a bit. Now you may find yourself with an arrow that is too short. You can then use justify = 1 to have the arrow start where the path ends.

p + geom_arrow(justify = 1, linewidth = 2)

Other times, you might find that you have resected your arrow too much. If there is no more space left for placing the arrow, they are omitted by default. To change this, and show arrows despite how short they may be, you can use the force_arrow argument. There is no guarantee that it will be placed in a nice position though.

p + geom_arrow(resect = 100, force_arrow = TRUE)
